제품소개
- 제품소개
- 1.6T/800G/400G/200G TRX
1.6T/800G/400G/200G TRX

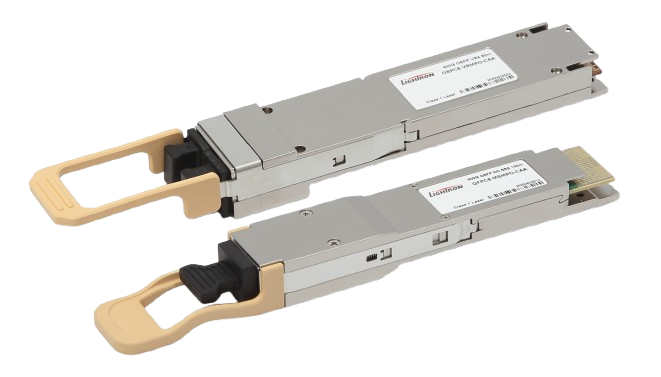

1.6T OSFP224
1.6T OSFP DR8
제품 주요기능
- Hot Pluggable OSFP Form Factor
- Support 1.6Tbps aggregate bit rate
- MPO-16 or 2*MPO-12 Connector
- 8*212.5Gb/s(PAM4) optical interface
- 8*212.5Gb/s(PAM4) electrical interface
- Sipho 1310nm Transmitter
- PIN+PD Receiver
- Based on 3nm DSP
- Maximum link length of 500m on Single Mode Fiber(SMF)
- Power consumption (Full Range):23.9W
자세히

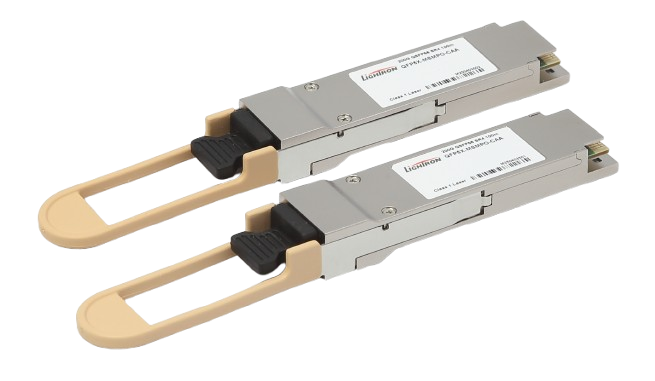

800G OSFP
800G OSFP SR8/DR8/2xFR4
제품 주요기능
- OSFP MSA Compliant
- CMIS Rev5.2 Compliant
- RoHS-6 Compliant
- Operating Case Temp. : Commercial
자세히

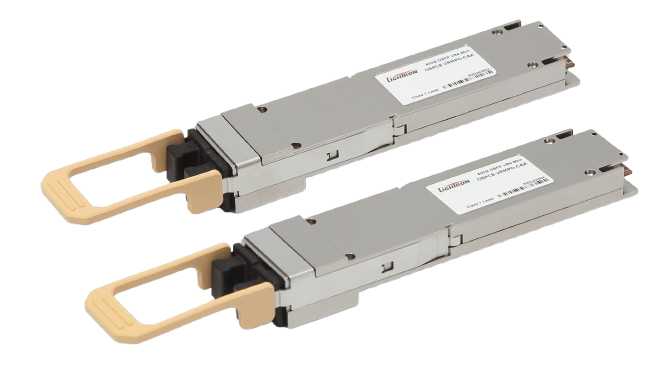

400G OSFP
400G OSFP VR4
제품 주요기능
- Supports 400GBASE-VR4
- 4x 106.25G PAM4 400G AUI-4 C2M Electrical Interface
- Up to 30m on OM3 MMF, 50m on OM4 MMF Transmission Distance
- 850nm VCSEL and PIN Receiver
- MPO-12 APC Connector
- Low EMI and Excellent ESD Protection
- Single +3.3V Power Supply
- Power Consumption < 7W
- Operating Case Temp : Commercial 0~+70°C
자세히

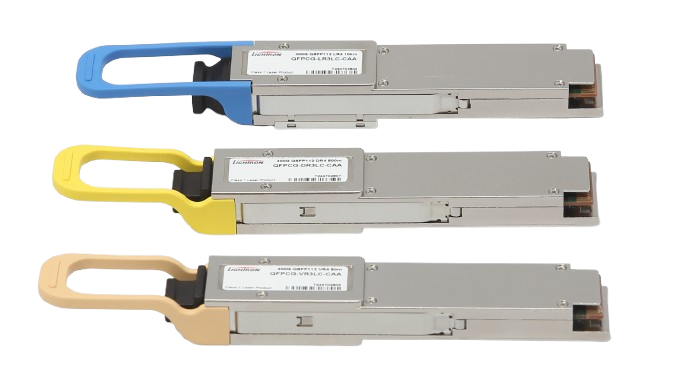

400G QSFP112
400G QSFP112 VR4/SR4/DR4/FR4/LR4
제품 주요기능
- QSFP112 MSA Compliant
- RoHS-6 Compliant
- Operating Case Temp. : Commercial
자세히
400G QSFP-DD
400G QSP-DD SR4/SR8/DR4/FR4/LR4
제품 주요기능
- QSFP-DD MSA Compliant
- RoHS-6 Compliant
- Operating Case Temp. : Commercial
자세히
200G QSFP56
200G QSFP56 SR4/LR4
제품 주요기능
- QSFP56 MSA Compliant
- RoHS-6 Compliant
- Operating Case Temp. : Commercial
자세히
